19-WC-YW-D
19-WC-YW-D/Asset/19-WC-YW-D.png
|
Color
N/A Yellow
|
Voltage
N/A 600/300 volts
|
Wire Range- Min.
N/A 2 #18
|
Wire Range- Max.
N/A 3 #12
|
Pieces per Bag
N/A 500
|
Pieces per Carton (Bags Per Master Carton)
N/A 5000 (10 Plastic bags, 500 each)
|

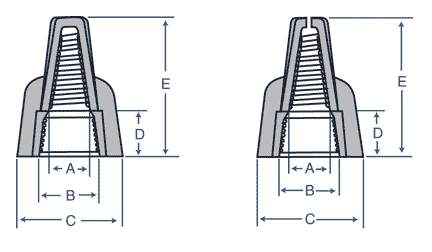

Dim. - A
N/A .252 (6.4) inches (mm)
|
Dim. - B
N/A .386 (9.8) inches (mm)
|
Dim. - C
N/A .717 (18.2) inches (mm)
|
Dim. - D
N/A .354 (9.0) inches (mm)
|
Dim. - E
N/A 1.016 (25.8) inches (mm)
|
|
19-WC-TN-D
19-WC-TN-D/Asset/19-WC-TN-D.png
|
Color
N/A Tan
|
Voltage
N/A 600/300 volts
|
Wire Range- Min.
N/A 3 #22
|
Wire Range- Max.
N/A 3 #10
|
Pieces per Bag
N/A 500
|
Pieces per Carton (Bags Per Master Carton)
N/A 5000 (10 Plastic bags, 500 each)
|
Dim. - A
N/A .283 (7.2) inches (mm)
|
Dim. - B
N/A .457 (11.6) inches (mm)
|
Dim. - C
N/A .720 (18.3) inches (mm)
|
Dim. - D
N/A .362 (9.2) inches (mm)
|
Dim. - E
N/A 1.142 (29.0) inches (mm)
|
|

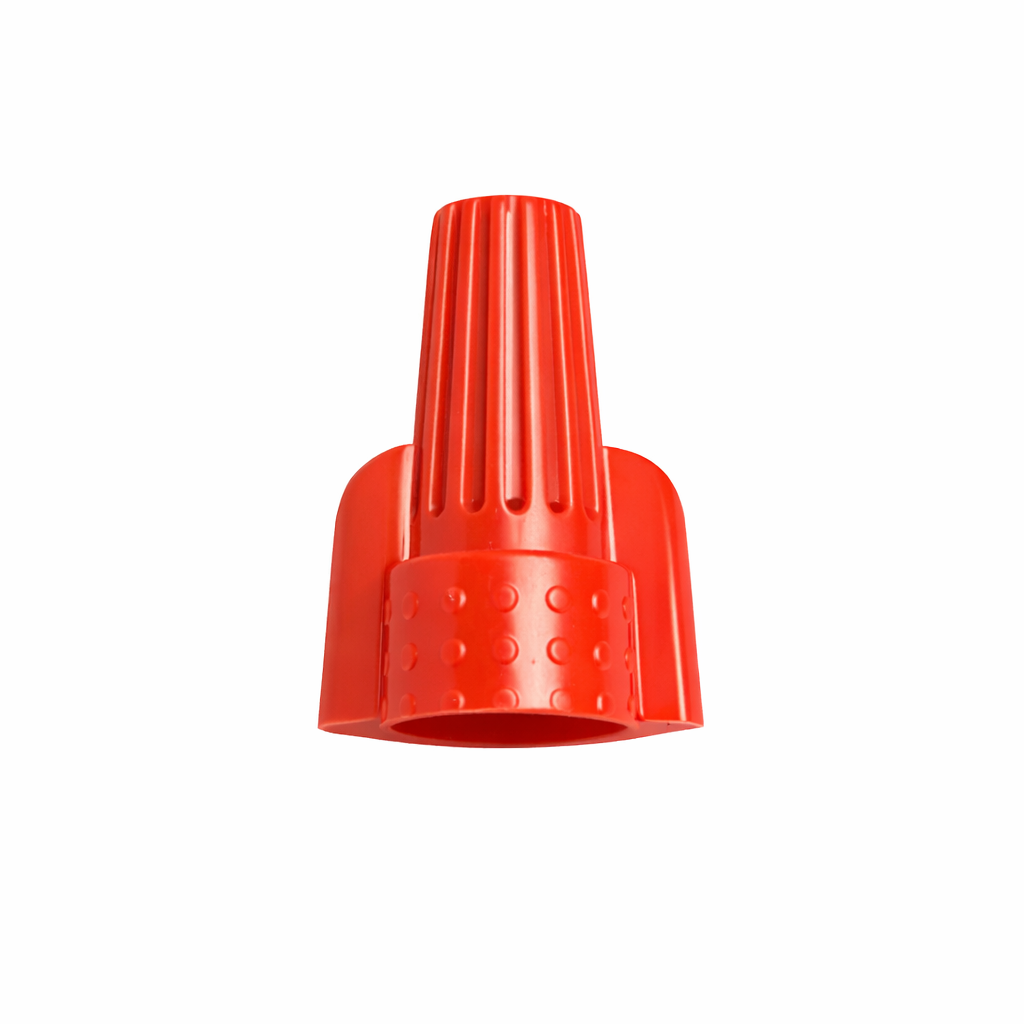

19-WC-RD-D
19-WC-RD-D/Asset/19-WC-RD-D.png
|
Color
N/A Red
|
Voltage
N/A 600/300 volts
|
Wire Range- Min.
N/A 3 #16
|
Wire Range- Max.
N/A 5 #12
|
Pieces per Bag
N/A 500
|
Pieces per Carton (Bags Per Master Carton)
N/A 5000 (10 Plastic bags, 500 each)
|
Dim. - A
N/A .354 (9.0) inches (mm)
|
Dim. - B
N/A .531 (13.5) inches (mm)
|
Dim. - C
N/A .906 (23.0) inches (mm)
|
Dim. - D
N/A .378 (9.6) inches (mm)
|
Dim. - E
N/A 1.252 (31.8) inches (mm)
|
|
19-WC-GY-CCL
19-WC-GY-CCL/Asset/19-WC-GY-CCL.png
|
Color
N/A Grey
|
Voltage
N/A 600 volts
|
Wire Range- Min.
N/A 3 #14 w/ 1 #18
|
Wire Range- Max.
N/A 3 #10 or 4 #12
|
Pieces per Bag
N/A 250
|
Pieces per Carton (Bags Per Master Carton)
N/A 2500 (10 Plastic bags, 250 each)
|
Dim. - A
N/A .394 (10.0) inches (mm)
|
Dim. - B
N/A .587 (14.9) inches (mm)
|
Dim. - C
N/A 1.00 (25.5) inches (mm)
|
Dim. - D
N/A .394 (10.0) inches (mm)
|
Dim. - E
N/A 1.311 (33.3) inches (mm)
|
|
19-WC-BL-C
19-WC-BL-C/Asset/19-WC-BL-C.png
|
Color
N/A Blue
|
Voltage
N/A 600 volts
|
Wire Range- Min.
N/A 2 #10 w/ 1 #12
|
Wire Range- Max.
N/A 1 #8 w/ 3 #10
|
Pieces per Bag
N/A 100
|
Pieces per Carton (Bags Per Master Carton)
N/A 1500 (10 Plastic bags, 100 each)
|
Dim. - A
N/A .472 (12.0) inches (mm)
|
Dim. - B
N/A .740 (18.8) inches (mm)
|
Dim. - C
N/A 1.260(32.0) inches (mm)
|
Dim. - D
N/A .516 (13.1) inches (mm)
|
Dim. - E
N/A 1.575 (40.0) inches (mm)
|
|
19-WC-GR-D
19-WC-GR-D/Asset/19-WC-GR-D.png
|
Color
N/A Green
|
Voltage N/A
|
Wire Range- Min.
N/A 2 #14
|
Wire Range- Max.
N/A 3 #12 w/ 1 #14
|
Pieces per Bag
N/A 500
|
Pieces per Carton (Bags Per Master Carton)
N/A 5000 (10 Plastic bags, 500 each)
|
Dim. - A
N/A .327 (8.3) inches (mm)
|
Dim. - B
N/A .476 (12.1) inches (mm)
|
Dim. - C
N/A .795 (20.2) inches (mm)
|
Dim. - D
N/A .370 (9.4) inches (mm)
|
Dim. - E
N/A 1.134 (28.8) inches (mm)
|
