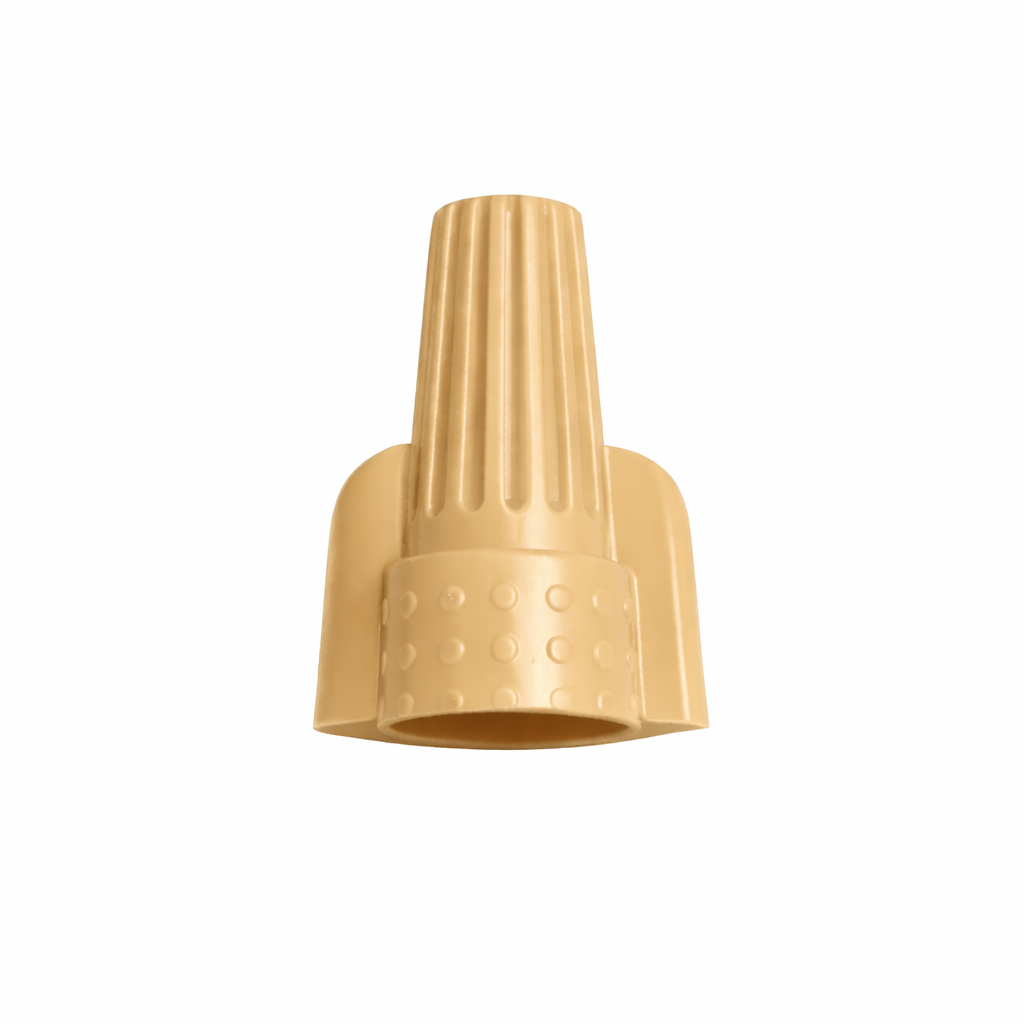

- Wing-type screw-on wire connector (WC Series)
- Temperature rating: 105°C
- UL94V-2 flame retardant material
Unit of Measure
Color |
N/A Tan |
Voltage |
N/A 600/300 volts |
Wire Range- Min. |
N/A 3 #22 |
Wire Range- Max. |
N/A 3 #10 |
Pieces per Bag |
N/A 500 |
Pieces per Carton (Bags Per Master Carton) |
N/A 5000 (10 Plastic bags, 500 each) |
Dim. - A |
N/A .283 (7.2) inches (mm) |
Dim. - B |
N/A .457 (11.6) inches (mm) |
Dim. - C |
N/A .720 (18.3) inches (mm) |
Dim. - D |
N/A .362 (9.2) inches (mm) |
Dim. - E |
N/A 1.142 (29.0) inches (mm) |
Note |
N/A UL Listed and CSA Approved |
Remark |
N/A 1,000V maximum in fixtures and signs |
