• 11 Series: Miniature Wire Saddle

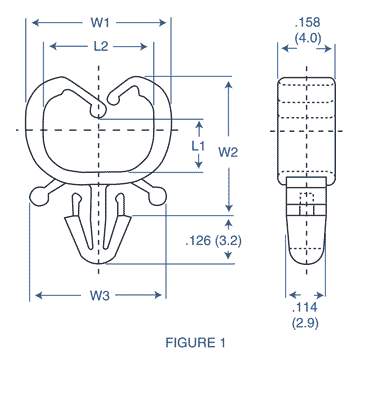

  • 03 - 11 Series - Dimensions
  • Micro wire saddles
  • 03-11 series (tension mount)
  • Packaging: 500/bag
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Material Code

Color

Material

Dim. - L1

Dim. - L2

Dim. - W1

Dim. - W2

Dim. - W3

Mounting Hole Diameter

Panel Thickness

N/A UL94V-2 N/A Natural N/A Nylon 6 N/A .145 (3.7) inches (mm) N/A .291 (7.4) inches (mm) N/A .386 (9.8) inches (mm) N/A .366 (9.3) inches (mm) N/A .362 (9.2) inches (mm) N/A .118 (3.0) inches (mm) N/A .024 - .063 (.6 - 1.6) inches (mm)
N/A UL94V-2 N/A Natural N/A Nylon 6 N/A .331 (8.4) inches (mm) N/A .291 (7.4) inches (mm) N/A .473 (12.0) inches (mm) N/A .504 (12.8) inches (mm) N/A .465 (11.8) inches (mm) N/A .138 (3.5) inches (mm) N/A .024 - .063 (.6 - 1.6) inches (mm)
N/A UL94V-0 N/A White N/A Nylon 66 N/A .145 (3.7) inches (mm) N/A .291 (7.4) inches (mm) N/A .386 (9.8) inches (mm) N/A .366 (9.3) inches (mm) N/A .362 (9.2) inches (mm) N/A .118 (3.0) inches (mm) N/A .024 - .063 (.6 - 1.6) inches (mm)
N/A UL94V-0 N/A White N/A Nylon 66 N/A .331 (8.4) inches (mm) N/A .291 (7.4) inches (mm) N/A .473 (12.0) inches (mm) N/A .504 (12.8) inches (mm) N/A .465 (11.8) inches (mm) N/A .138 (3.5) inches (mm) N/A .024 - .063 (.6 - 1.6) inches (mm)
