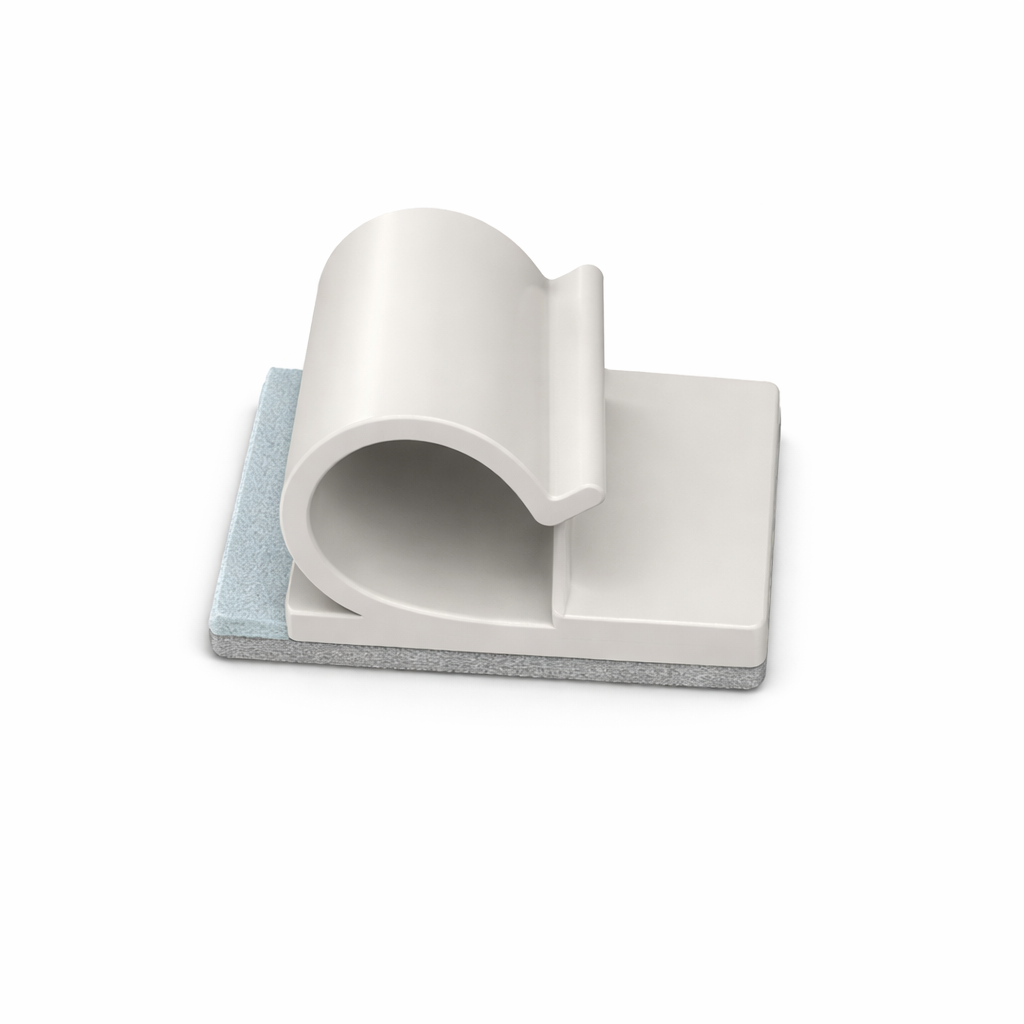

• 27 Series: Adhesive Clip - Side Entry
  • 03-27 Sketch Issue A
  • Adhesive backed tape (double coated rubber based foam tape)
  • Extra wide pull tab on adhesive tape is easy to remove; reduces mounting time
  • Variety of applications
  • Material Code: UL94V-0
  • Color: Gray
  • Material: PVC
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Package Size

Max. Holding Dia. - D

L +/-.030 (.76)

W +/-.020 (.5)

H (REF)

N/A 500 / bag N/A .126 ±.030 (3.2 ±.76) inches (mm) N/A .752 (19.1) N/A .752 (19.1) inches (mm) N/A .250 (6.35) inches (mm)
N/A 500 / bag N/A .252 ±.030 (6.4 ±.76) inches (mm) N/A .752 (19.1) N/A .752 (19.1) inches (mm) N/A .42 (10.7) inches (mm)
N/A 500 / bag N/A .374 ±.030 (9.5 ±.76) inches (mm) N/A .752 (19.1) N/A .752 (19.1) inches (mm) N/A .500 (12.7) inches (mm)
N/A 500 / bag N/A .500 ±.030 (12.7 ±.76) inches (mm) N/A 1.00 (25.4) N/A 1.00 (25.4) inches (mm) N/A .65 (16.5) inches (mm)
N/A 100 / bag N/A .752 ±.030 (19.1 ±.76) inches (mm) N/A 1.00 (25.4) N/A 1.00 (25.4) inches (mm) N/A .874 (22.2) inches (mm)
