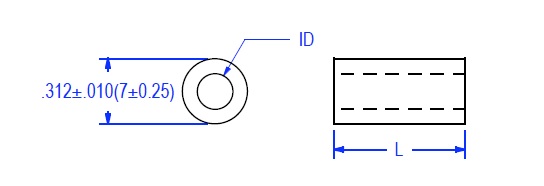

11 Series: .312 OD(5/16) Round Spacer
Round Unthreaded
- 5/16(.312) O.D. round nylon spacer
- Mount with self tapping screw
- Screw size: #4,#6,#8 & #10
- Material Code: UL94V-2
- Color: Natural (Black Available)
- Packaging: 500/bag
- Material: Nylon 66
- RoHS Complaint
Item # |
Dim. - L |
I.D. Clearance |
|---|---|---|
| 07-11-10125 07-11-10125/Asset/07 - 11 Series.jpg | Dim. - L N/A .125 (3.2) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10187 07-11-10187/Asset/07 - 11 Series.jpg | Dim. - L N/A .187 (4.8) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10250 07-11-10250/Asset/07 - 11 Series.jpg | Dim. - L N/A .250 ± .005 (6.4) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10312 07-11-10312/Asset/07 - 11 Series.jpg | Dim. - L N/A .312 (7.9) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10375 07-11-10375/Asset/07 - 11 Series.jpg | Dim. - L N/A .375 ± .005 (9.26) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10437 07-11-10437/Asset/07 - 11 Series.jpg | Dim. - L N/A .437 (11.1) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10500 07-11-10500/Asset/07 - 11 Series.jpg | Dim. - L N/A .500 ± .005 (12.7) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10562 07-11-10562/Asset/07 - 11 Series.jpg | Dim. - L N/A .562 (14.3) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10625 07-11-10625/Asset/07 - 11 Series.jpg | Dim. - L N/A .625 ± .005 (15.9) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10687 07-11-10687/Asset/07 - 11 Series.jpg | Dim. - L N/A .687 (17.5) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10750 07-11-10750/Asset/07 - 11 Series.jpg | Dim. - L N/A .750 ± .005 (19.1) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10812 07-11-10812/Asset/07 - 11 Series.jpg | Dim. - L N/A .812 (20.6) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10875 07-11-10875/Asset/07 - 11 Series.jpg | Dim. - L N/A .875 ± .005 (22.2) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-10937 07-11-10937/Asset/07 - 11 Series.jpg | Dim. - L N/A .937 (23.8) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-101000 07-11-101000/Asset/07 - 11 Series.jpg | Dim. - L N/A 1.000 ± .005 (25.4) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-101125 07-11-101125/Asset/07 - 11 Series.jpg | Dim. - L N/A 1.125 (28.58) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-101250 07-11-101250/Asset/07 - 11 Series.jpg | Dim. - L N/A 1.250 (31.75) inches (mm) | I.D. Clearance N/A .201 (5.1) inches (mm) |
| 07-11-4125 07-11-4125/Asset/07 - 11 Series.jpg | Dim. - L N/A .125 (3.2) inches (mm) | I.D. Clearance N/A .128 (3.25) inches (mm) |
| 07-11-4187 07-11-4187/Asset/07 - 11 Series.jpg | Dim. - L N/A .187 (4.8) inches (mm) | I.D. Clearance N/A .128 (3.25) inches (mm) |
| 07-11-4250 07-11-4250/Asset/07 - 11 Series.jpg | Dim. - L N/A .250 (6.4) inches (mm) | I.D. Clearance N/A .128 (3.25) inches (mm) |
| 07-11-4312 07-11-4312/Asset/07 - 11 Series.jpg | Dim. - L N/A .312 (7.9) inches (mm) | I.D. Clearance N/A .128 (3.25) inches (mm) |
| 07-11-4375 07-11-4375/Asset/07 - 11 Series.jpg | Dim. - L N/A .375 (9.5) inches (mm) | I.D. Clearance N/A .128 (3.25) inches (mm) |
| 07-11-4437 07-11-4437/Asset/07 - 11 Series.jpg | Dim. - L N/A .437 (11.1) inches (mm) | I.D. Clearance N/A .128 (3.25) inches (mm) |
| 07-11-4500 07-11-4500/Asset/07 - 11 Series.jpg | Dim. - L N/A .500 (12.7) inches (mm) | I.D. Clearance N/A .128 (3.25) inches (mm) |
| 07-11-4562 07-11-4562/Asset/07 - 11 Series.jpg | Dim. - L N/A .562 (14.3) inches (mm) | I.D. Clearance N/A .128 (3.25) inches (mm) |
