• 14M Series: .156 Board Hole x M-4 Thd. Chassis Side

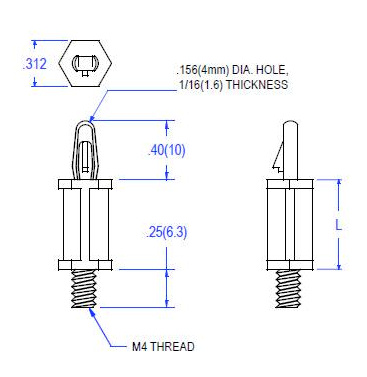

  • 01-14M Sketch

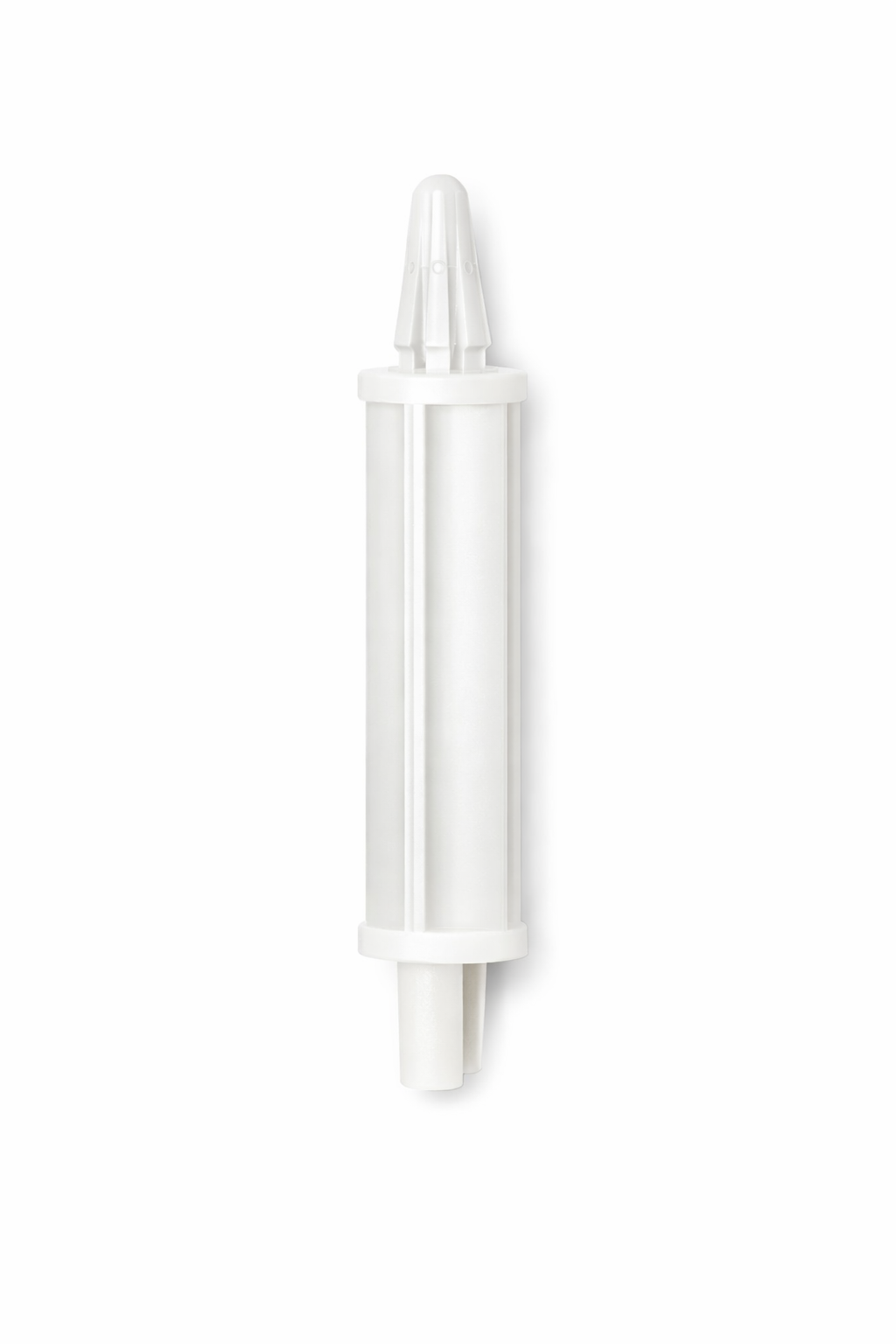

  • Threaded circuit board support (M-4 Thread)
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

L +/- .015

N/A .250 (6.4) inches (mm)
N/A .375 (9.5) inches (mm)
N/A .500 (12.7) inches (mm)
N/A .625 (15.9) inches (mm)
N/A .750 (19.1) inches (mm)
N/A .875 (22.2) inches (mm)
N/A 1.00 (25.4) inches (mm)
N/A 1.125 (28.6) inches (mm)
N/A 1.406 (35.7) inches (mm)
