03-05-11

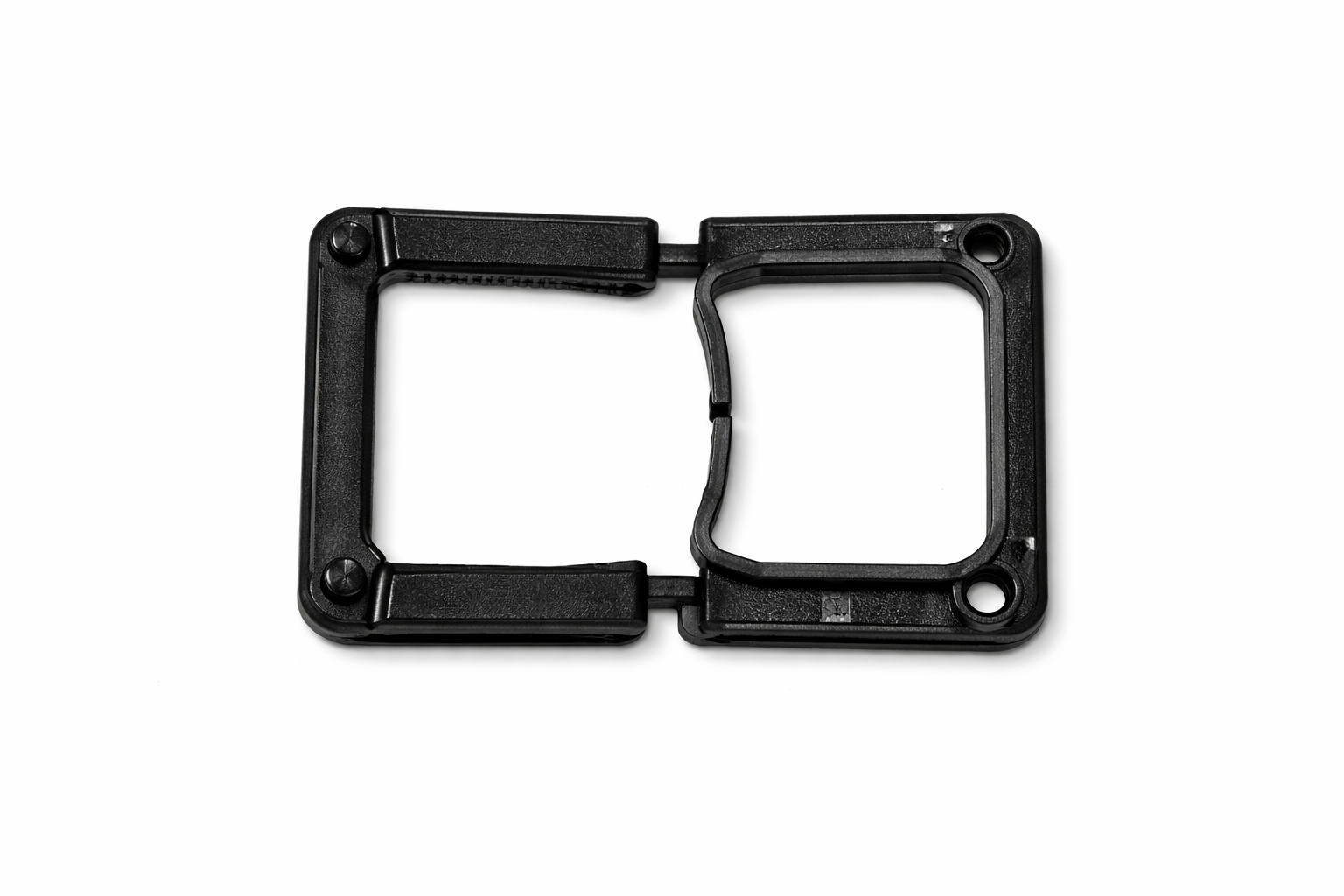

03-05-11/Asset/03-05-Edge-Wire-Saddle.png
|
Material Code
N/A UL94V-2
|
Dim. - L1
N/A .354 (9.0) inches (mm)
|
Dim. - L2
N/A .394 (10.0) inches (mm)
|
Dim. - L3
N/A .465 (11.8) inches (mm)
|
Dim. - W1
N/A .433 (11.0) inches (mm)
|
Dim. - W2
N/A .724 (18.4) inches (mm)
|
Dim. - T1
N/A .047 (1.2) inches (mm)
|
Dim. - T2
N/A .079 (2.0) inches (mm)
|
Dim. - D
N/A .077 (1.95) inches (mm)
|
Panel Thickness
N/A .032 - .079 (.8 - 2.0) inches (mm)
|
|
03-05-14
03-05-14/Asset/03-05-Edge-Wire-Saddle.png
|
Material Code
N/A UL94V-2
|
Dim. - L1
N/A .512 (13.0) inches (mm)
|
Dim. - L2
N/A .571 (14.5) inches (mm)
|
Dim. - L3
N/A .661 (16.8) inches (mm)
|
Dim. - W1
N/A .551 (14.0) inches (mm)
|
Dim. - W2
N/A .866 (22.0) inches (mm)
|
Dim. - T1
N/A .051 (1.3) inches (mm)
|
Dim. - T2
N/A .079 (2.0) inches (mm)
|
Dim. - D
N/A .079 (2.0) inches (mm)
|
Panel Thickness
N/A .032 - .079 (.8 - 2.0) inches (mm)
|
|
03-05-18
03-05-18/Asset/03-05-Edge-Wire-Saddle.png
|
Material Code
N/A UL94V-2
|
Dim. - L1
N/A .641 (16.3) inches (mm)
|
Dim. - L2
N/A .689 (17.5) inches (mm)
|
Dim. - L3
N/A .780 (19.8) inches (mm)
|
Dim. - W1
N/A .709 (18.0) inches (mm)
|
Dim. - W2
N/A 1.02 (25.0) inches (mm)
|
Dim. - T1
N/A .059 (1.5) inches (mm)
|
Dim. - T2
N/A .079 (2.0) inches (mm)
|
Dim. - D
N/A .091 (2.3) inches (mm)
|
Panel Thickness
N/A .032 - .079 (.8 - 2.0) inches (mm)
|
|
03-05-11X
03-05-11X/Asset/03-05-Edge-Wire-Saddle.png
|
Material Code
N/A UL94V-0
|
Dim. - L1
N/A .354 (9.0) inches (mm)
|
Dim. - L2
N/A .394 (10.0) inches (mm)
|
Dim. - L3
N/A .465 (11.8) inches (mm)
|
Dim. - W1
N/A .433 (11.0) inches (mm)
|
Dim. - W2
N/A .724 (18.4) inches (mm)
|
Dim. - T1
N/A .047 (1.2) inches (mm)
|
Dim. - T2
N/A .079 (2.0) inches (mm)
|
Dim. - D
N/A .077 (1.95) inches (mm)
|
Panel Thickness
N/A .032 - .079 (.8 - 2.0) inches (mm)
|
|
03-05-14X
03-05-14X/Asset/03-05-Edge-Wire-Saddle.png
|
Material Code
N/A UL94V-0
|
Dim. - L1
N/A .512 (13.0) inches (mm)
|
Dim. - L2
N/A .571 (14.5) inches (mm)
|
Dim. - L3
N/A .661 (16.8) inches (mm)
|
Dim. - W1
N/A .551 (14.0) inches (mm)
|
Dim. - W2
N/A .866 (22.0) inches (mm)
|
Dim. - T1
N/A .051 (1.3) inches (mm)
|
Dim. - T2
N/A .079 (2.0) inches (mm)
|
Dim. - D
N/A .079 (2.0) inches (mm)
|
Panel Thickness
N/A .032 - .079 (.8 - 2.0) inches (mm)
|
|
03-05-18X
03-05-18X/Asset/03-05-Edge-Wire-Saddle.png
|
Material Code
N/A UL94V-0
|
Dim. - L1
N/A .641 (16.3) inches (mm)
|
Dim. - L2
N/A .689 (17.5) inches (mm)
|
Dim. - L3
N/A .780 (19.8) inches (mm)
|
Dim. - W1
N/A .709 (18.0) inches (mm)
|
Dim. - W2
N/A 1.02 (25.0) inches (mm)
|
Dim. - T1
N/A .059 (1.5) inches (mm)
|
Dim. - T2
N/A .079 (2.0) inches (mm)
|
Dim. - D
N/A .091 (2.3) inches (mm)
|
Panel Thickness
N/A .032 - .079 (.8 - 2.0) inches (mm)
|
