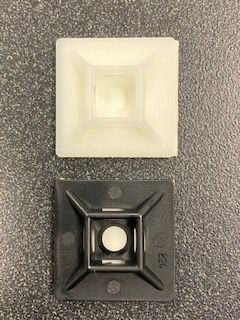

• 50E Series(1"): 4 Way Mounting Bases

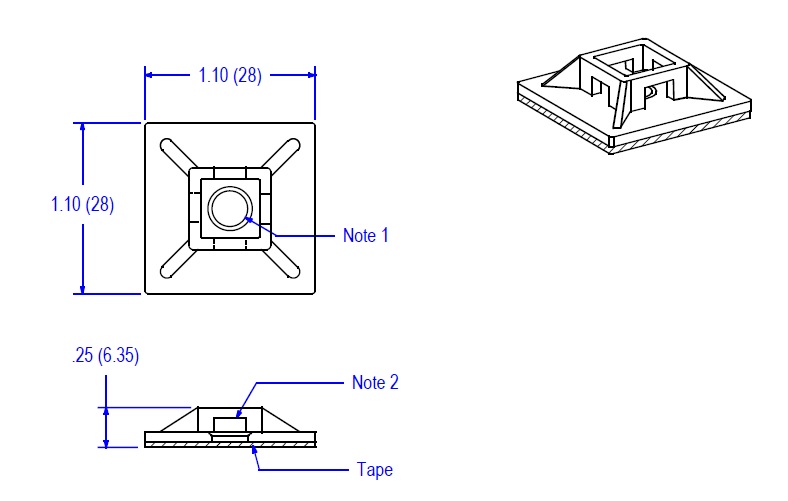

  • 02-50-1008E SKETCH
  • 4 Way Cable Tie Mounting Base
  • Economy Style (1"x 1" square)
  • Adhesive backed - No Release Tab
  • Adhesive: Rubber Base
  • Screw Mount: #10 Flat Head
  • Packaging: 100/bag
  • Material: Nylon 66 UL94V-2
  • Color: Natural or UV Black
  • UL File No: E70062
  • ASTM: D 4066
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Color

Note 1

Note 2

N/A Natural N/A .23 (5.8) Screw Hole for #10 Flat Head Screw inches (mm) N/A .20(5.1) Ht x .09(2.3) Wide Slot Accomodates 18-60 (8.2-27.2) Cable Ties lbs (Kg)
N/A Black N/A .23 (5.8) Screw Hole for #10 Flat Head Screw inches (mm) N/A .20(5.1) Ht x .09(2.3) Wide Slot Accomodates 18-60 (8.2-27.2) Cable Ties lbs (Kg)
