• 72 Series: .157 Board Hole x .157 Chassis Side

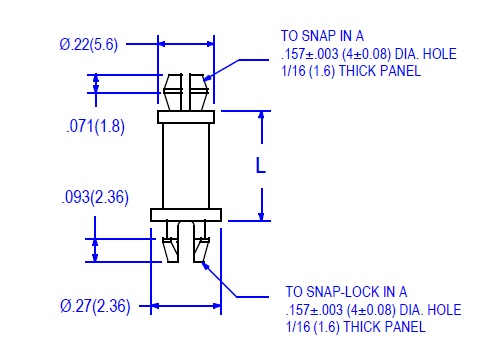

  • 01-72 Sketch

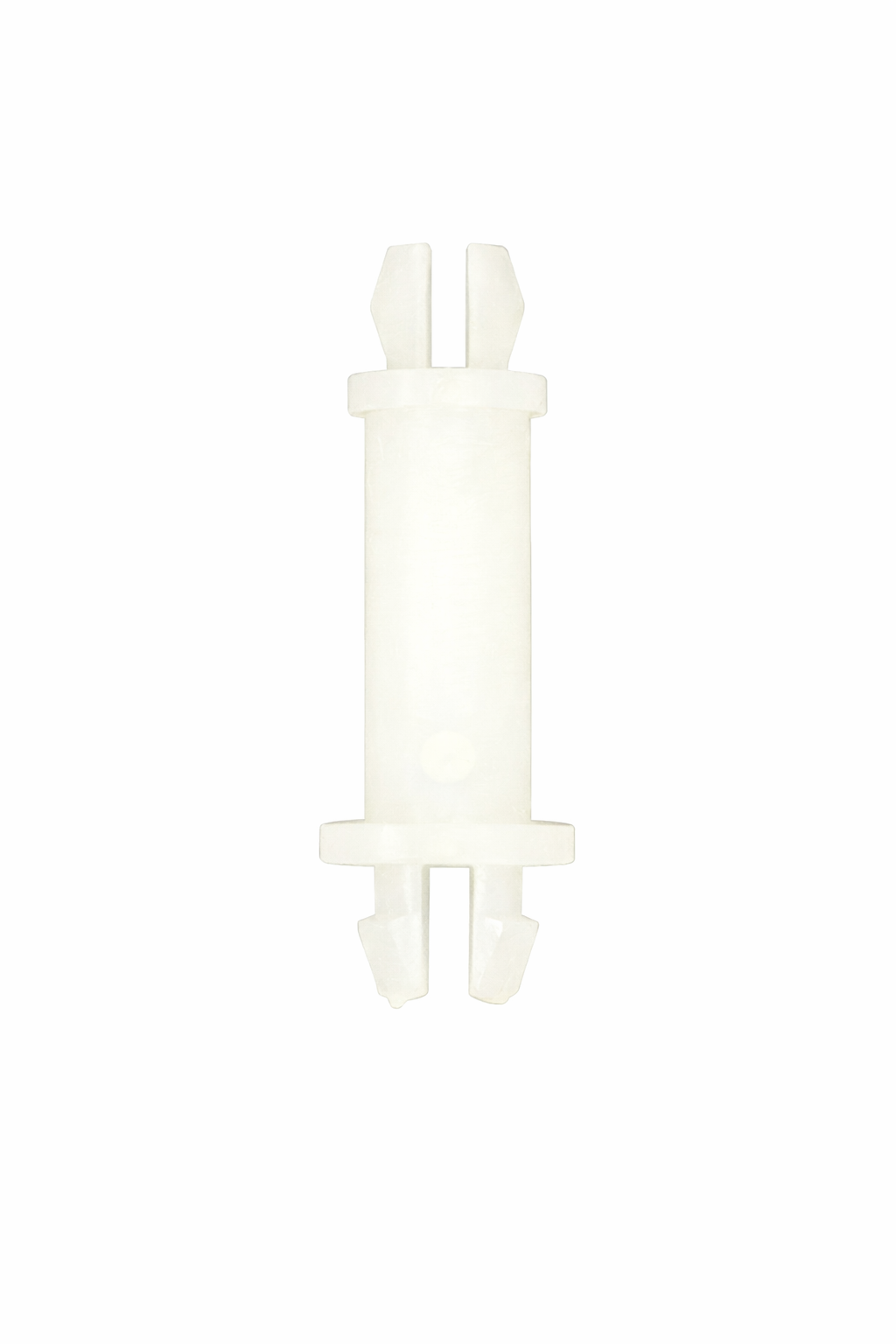

  • PCB Support
  • .157 Snap Fit PCB x .157 Lock Fit Chassis End
  • Color: Natural
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E41938
  • ASTM:  D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

N/A .187 (4.8) inches (mm)
N/A .250 (6.4) inches (mm)
N/A .312 (7.9) inches (mm)
N/A .375 (9.5) inches (mm)
N/A .437 (11.1) inches (mm)
N/A .500 (12.7) inches (mm)
N/A .625 (15.9) inches (mm)
N/A .687 (17.5) inches (mm)
N/A .750 (19.1) inches (mm)
N/A .875 (22.2) inches (mm)
