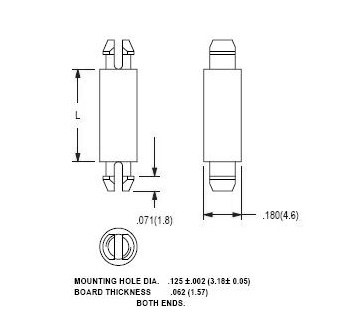

• 18A Series: .125 Board Hole x .125 Chassis Side
  • 01-18A
  • Installs easily by hand
  • Snap locks into place yet is releasable
  • Mounting hole diameter is .125 (3.2mm) Both ends
  • Color: Natural
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E41938
  • ASTM:  D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

Request Quote/Sample
N/A .125 (3.2) inches (mm) Request Quote/Sample
N/A .187 (4.8) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A .562 (14.3) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) Request Quote/Sample
N/A .687 (17.5) inches (mm) Request Quote/Sample
N/A .750 (19.7) inches (mm) Request Quote/Sample
N/A .812 (20.6) inches (mm) Request Quote/Sample
N/A .875 (22.2) inches (mm) Request Quote/Sample
N/A 1.00 (25.4) inches (mm) Request Quote/Sample
N/A 1.12 (28.6) inches (mm) Request Quote/Sample
N/A 1.25 (31.8) inches (mm) Request Quote/Sample
N/A 1.38 (34.9) inches (mm) Request Quote/Sample
N/A 1.53 (38.9) inches (mm) Request Quote/Sample
