• 16 Series: Locking Tension Clips (adhesive mount)

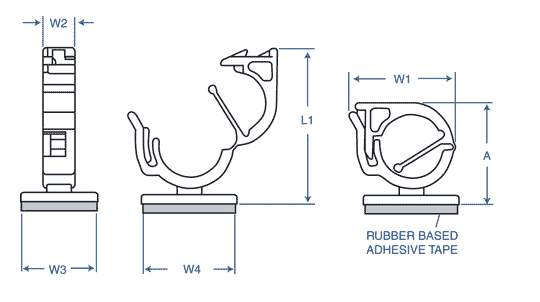

  • 04 - 16 Series - Dimensions
  • Easy lock tension clip
  • Adhesive mount
  • Packaging: 500/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No: E53664
  • ASTM: D 4066, PA111
  • RoHS Complianr
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Material Code

Color

Bundle Diameter Range

Dim. - A

Dim. - L

Dim. - W1

Dim. - W2

Dim. - W3

Dim. - W4

N/A UL94V-2 N/A Natural N/A .158 - .236 (4.0 - 6.0) inches (mm) N/A .528 (13.4) inches (mm) N/A .811 (20.6) inches (mm) N/A .551 (14.0) inches (mm) N/A .197 (5.0) inches (mm) N/A .472 (12.0) inches (mm) N/A .472 (12.0) inches (mm)
N/A UL94V-2 N/A Natural N/A .236 - .315 (6.0 - 8.0) inches (mm) N/A .630 (16.0) inches (mm) N/A .980 (24.9) inches (mm) N/A .657 (16.7) inches (mm) N/A .197 (5.0) inches (mm) N/A .472 (12.0) inches (mm) N/A .591 (15.0) inches (mm)
N/A UL94V-2 N/A Natural N/A .315 - .394 (8.0 - 10.0) inches (mm) N/A .752 (19.1) inches (mm) N/A 1.16 (29.4) inches (mm) N/A .787 (20.0) inches (mm) N/A .197 (5.0) inches (mm) N/A .591 (15.0) inches (mm) N/A .689 (17.5) inches (mm)
N/A UL94V-0 N/A White N/A .158 - .236 (4.0 - 6.0) inches (mm) N/A .528 (13.4) inches (mm) N/A .811 (20.6) inches (mm) N/A .551 (14.0) inches (mm) N/A .197 (5.0) inches (mm) N/A .472 (12.0) inches (mm) N/A .472 (12.0) inches (mm)
N/A UL94V-0 N/A White N/A .236 - .315 (6.0 - 8.0) inches (mm) N/A .630 (16.0) inches (mm) N/A .980 (24.9) inches (mm) N/A .657 (16.7) inches (mm) N/A .197 (5.0) inches (mm) N/A .472 (12.0) inches (mm) N/A .591 (15.0) inches (mm)
N/A UL94V-0 N/A White N/A .315 - .394 (8.0 - 10.0) inches (mm) N/A .752 (19.1) inches (mm) N/A 1.16 (29.4) inches (mm) N/A .787 (20.0) inches (mm) N/A .197 (5.0) inches (mm) N/A .591 (15.0) inches (mm) N/A .689 (17.5) inches (mm)
