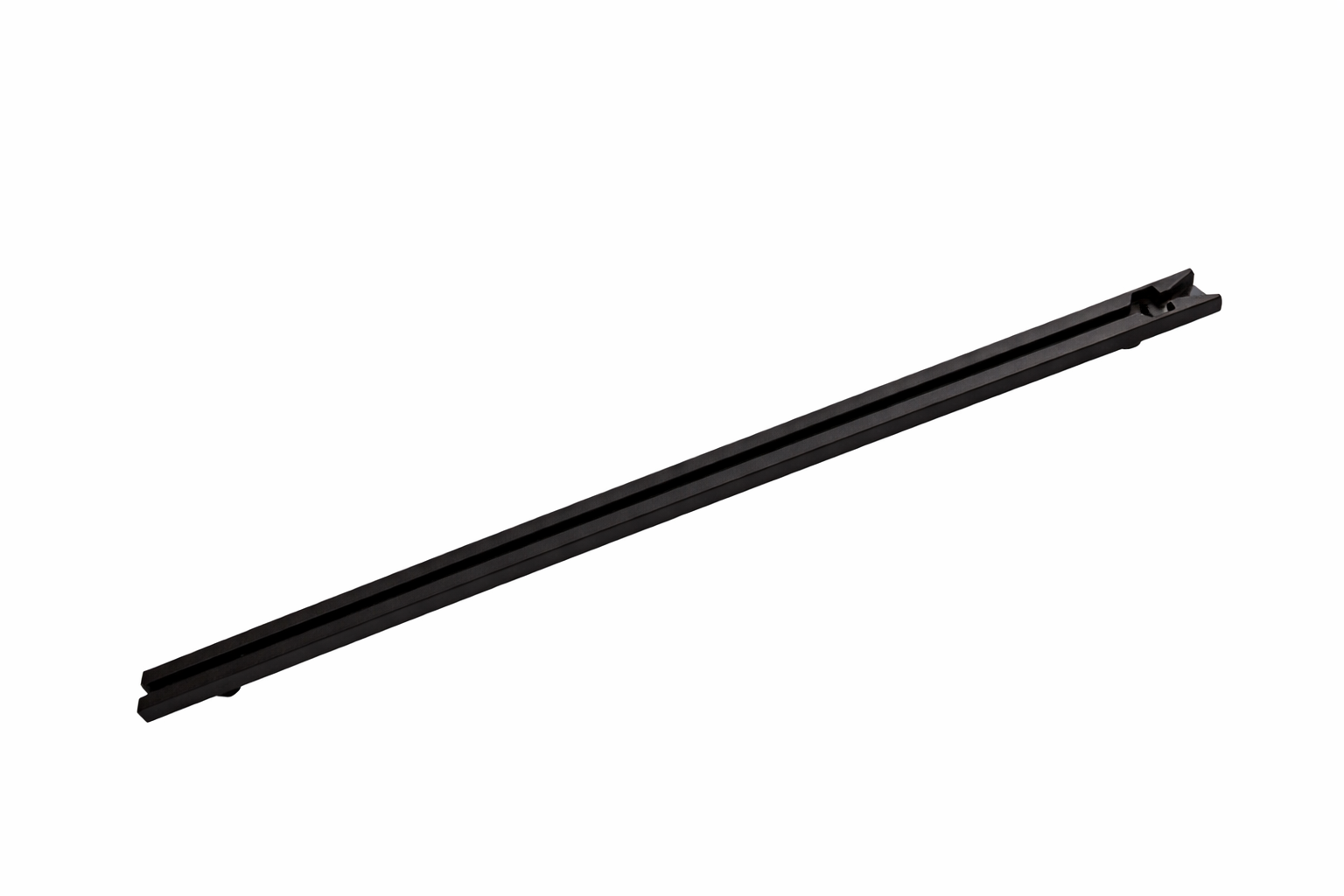

05 Series: Economy Card Guide On All Electronics Hardware

Skip To Content

Catalog

Installs easily by hand
Rigid, Strong, & Heat Resistant
Material Code: UL94V-0
Temp Range: -40 to 220 F
Color: Black
Packaging: 500/bag
Material: Nylon 66(E157318) 10% Glass Filled
RoHS Compliant

1 - 13 of 13 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

Item #	L1 (+/-.062)	L2 (+.016/-.032)

14-05-200	N/A 2.0 (50.8) inches (mm)	N/A 1.016 (25.8) inches (mm)
14-05-250	N/A 2.5 (63.5) inches (mm)	N/A 1.516 (38.5) inches (mm)
14-05-300	N/A 3.0 (76.2) inches (mm)	N/A 1.516 (38.5) inches (mm)
14-05-350	N/A 3.5 (88.9) inches (mm)	N/A 1.516 (38.5) inches (mm)
14-05-400	N/A 4.0 (101.6) inches (mm)	N/A 3.016 (76.6) inches (mm)
14-05-450	N/A 4.5 (114.3) inches (mm)	N/A 3.016 (76.6) inches (mm)
14-05-500	N/A 5.0 (127) inches (mm)	N/A 3.016 (76.6) inches (mm)
14-05-550	N/A 5.5 (139.7) inches (mm)	N/A 3.016 (76.6) inches (mm)
14-05-600	N/A 6.0 (152.4) inches (mm)	N/A 5.016 (127.4) inches (mm)
14-05-650	N/A 6.5 (165.1) inches (mm)	N/A 5.016 (127.4) inches (mm)
14-05-700	N/A 7.0 (177.8) inches (mm)	N/A 6.031 (153.2) inches (mm)
14-05-750	N/A 7.5 (190.5) inches (mm)	N/A 6.031 (153.2) inches (mm)
14-05-800	N/A 8.0 (203.2) inches (mm)	N/A 6.031 (153.2) inches (mm)
