• 03 Series - LED Spacer

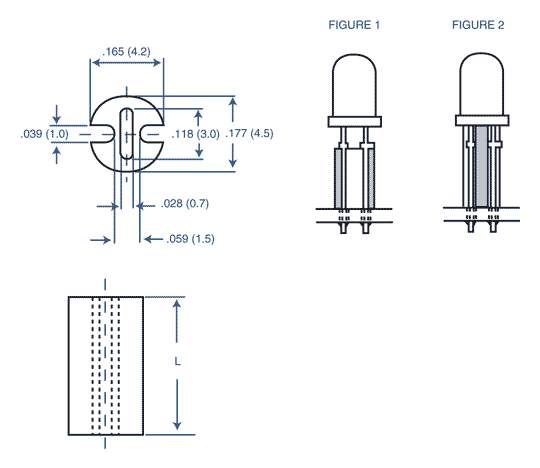

  • 09 - 03 Series - Dimensions
  • For 5mm Dia LED
  • Chemical and heat resistant
  • Two mounting methods; via oval center hole or via outside slits
  • Spaces and insulates
  • Material Code: UL94V-0(E58608)
  • Color: Black
  • Packaging: 1000/bag
  • Material: Olefin Elastomers(SEPS)
1 - 25 of 29 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items

Item #

Dim. - L

N/A .039 (1) inches (mm)
N/A .059 (1.5) inches (mm)
N/A .079 ± .004 (2.0 ± .1) inches (mm)
N/A .098 (2.5) inches (mm)
N/A .118 ± .004 (3.0 ± .1) inches (mm)
N/A .138 (3.5) inches (mm)
N/A .158 ± .004 (4.0 ± .1) inches (mm)
N/A .177 (4.5) inches (mm)
N/A .197 ± .004 (5.0 ± .1) inches (mm)
N/A .216 (5.5) inches (mm)
N/A .236 ± .004 (6.0 ± .1) inches (mm)
N/A .256 (6.5) inches (mm)
N/A .276 ± .004 (7.0 ± .1) inches (mm)
N/A .295 (7.5) inches (mm)
N/A .315 ± .004 (8.0 ± .1) inches (mm)
N/A .335 (8.5) inches (mm)
N/A .354 ± .004 (9.0 ± .1) inches (mm)
N/A .374 (9.5) inches (mm)
N/A .394 ± .004 (10.0 ± .1) inches (mm)
N/A .413 (10.5) inches (mm)
N/A .433 (11) inches (mm)
N/A .452 (11.5) inches (mm)
N/A .472 ± .004 (12.0 ± .1) inches (mm)
N/A .492 (12.5) inches (mm)
N/A .512 (13) inches (mm)
