• 04 Series: Insulating Hole Grommets

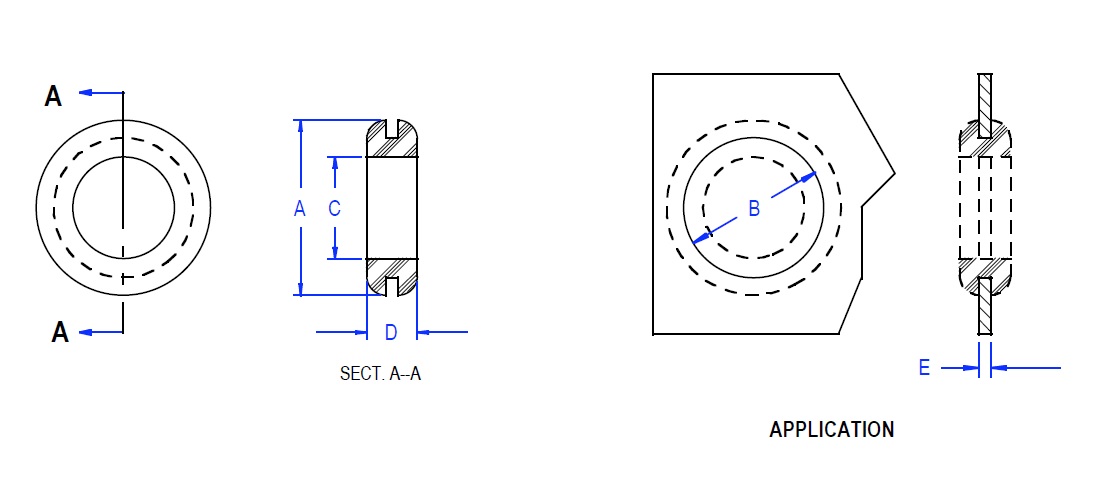

  • 08-04 Sketch Issue F
  • Insulating Hole Grommets
  • Edge/Wire Protection
  • Material: Soft PVC
  • Durometer:  60 Shore A
  • RoHS Compliant
  • Temp Range(Ref): 32 to 132 F (0 to 50 C)
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Dim B Hole Dia

Dim C REF.

Dim A +/-.020

D +/- .015

E Panel Thickness

N/A .37 (9.35) inches (mm) N/A 1/4" (6.35) inches (mm) N/A .562 (14.3) inches (mm) N/A .28 (7.1) inches (mm) N/A 3/32 (2.36) inches (mm)
N/A .49 (12.4) inches (mm) N/A 3/8 (9.5) inches (mm) N/A .672 (17.1) inches (mm) N/A .28 (7.1) inches (mm) N/A 1/16 (1.57) inches (mm)
N/A .69 (17.5) inches (mm) N/A 1/2" (12.7) inches (mm) N/A .86 (21.8) inches (mm) N/A .25 (6.4) inches (mm) N/A 1/16 (1.57) inches (mm)
N/A 1.00 (25.4) inches (mm) N/A 3/4" (19.05) inches (mm) N/A 1.234 (31.34) inches (mm) N/A .31 (7.9) inches (mm) N/A 1/16 (1.57) inches (mm)
