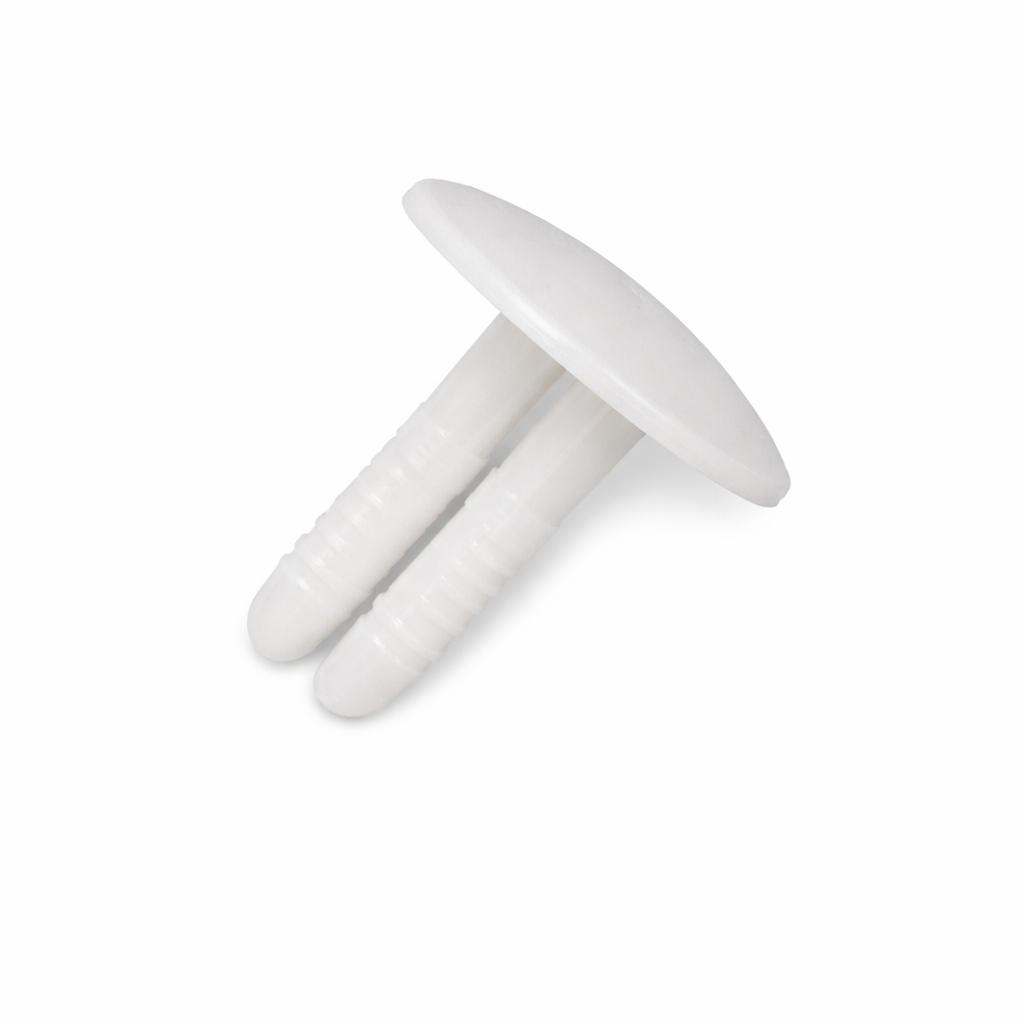

• 07 Series: Mating / Ratchet Rivets (.281 hole dia.)
  • 06 - 07 Series - Dimensions
  • Mating rivets (need 2 pieces per assembly)
  • Holds flat panels in assortment of materials
  • Serrated teeth allow adjustments for a variety of panel thicknesses
  • Material Code: U94V-2
  • Color: Natural
  • Packaging: 1000/bag (500sets/bag)
  • Material: Nylon 66
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Hole Diameter

Dim. - L

Dim. - W

Dim. - T

Panel Thickness

N/A .281 (7.14) inches (mm) N/A .226 (5.74) inches (mm) N/A .406 (10.31) inches (mm) N/A .062 (1.57) inches (mm) N/A .235 - .297 (5.97 - 7.54) inches (mm)
N/A .281 (7.14) inches (mm) N/A .344 (8.74) inches (mm) N/A .406 (10.31) inches (mm) N/A .062 (1.57) inches (mm) N/A .346 - .500 (8.79 - 12.7) inches (mm)
N/A .281 (7.14) inches (mm) N/A .488 (12.40) inches (mm) N/A .406 (10.31) inches (mm) N/A .062 (1.57) inches (mm) N/A .500 - .812 (12.7 - 20.6) inches (mm)
N/A .281 (7.14) inches (mm) N/A .768 (19.51) inches (mm) N/A .406 (10.31) inches (mm) N/A .062 (1.57) inches (mm) N/A .780 - 1.38 (19.8 - 35.1) inches (mm)
N/A .281 (7.14) inches (mm) N/A .226 (5.74) inches (mm) N/A .750 (19.1) inches (mm) N/A .093 (2.36) inches (mm) N/A .235 - .297 (5.97 - 7.54) inches (mm)
N/A .281 (7.14) inches (mm) N/A .334 (8.74) inches (mm) N/A .750 (19.1) inches (mm) N/A .093 (2.36) inches (mm) N/A .346 - .500 (8.79 - 12.7) inches (mm)
N/A .281 (7.14) inches (mm) N/A .488 (12.40) inches (mm) N/A .750 (19.1) inches (mm) N/A .093 (2.36) inches (mm) N/A .500 - .812 (12.7 - 20.6) inches (mm)
N/A .281 (7.14) inches (mm) N/A .768 (19.51) inches (mm) N/A .750 (19.1) inches (mm) N/A .093 (2.36) inches (mm) N/A .780 - 1.38 (19.8 - 35.1) inches (mm)
