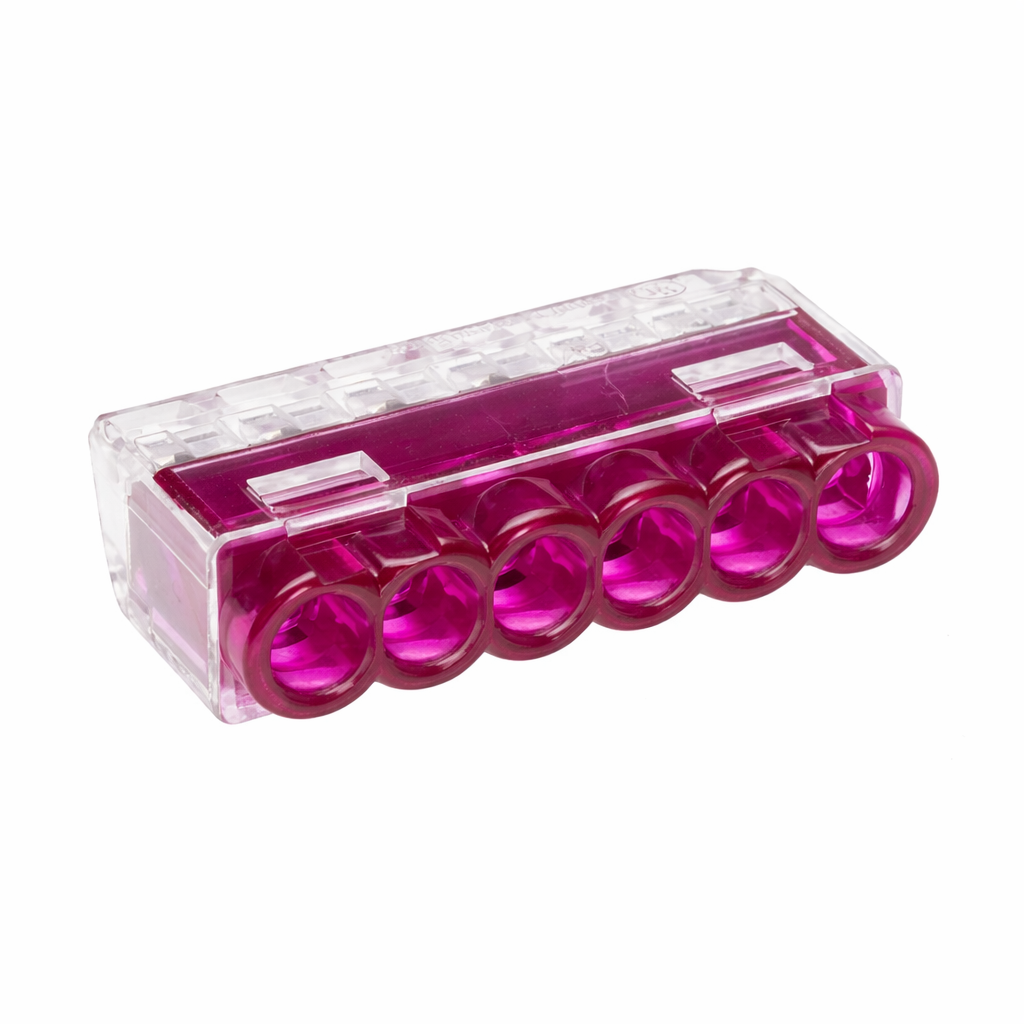

- Push-in Wire Connector
- Solid and Stranded Wires (No. 22-12 AWG)
- Stranded Conductors DO NOT need to be tinned
- Polycarbonate Housing: Clear for easy Inspection
- Inline Construction(NOT Stacked)
- Test Slot in front permits easy access for voltage tester
- Clamp Unit: Copper, Tin Plated, Stainless Steel Spring, Steel frame Zinc Plated
- Strip Length: (.43 inch) (11mm)
- Voltage Rating Building Wiring: 600V Max
- Voltage Rating Lighting Fixtures & Signs: 1000V Max
Unit of Measure
Color |
N/A Purple |
Wire Range- Min. |
N/A 12 AWG |
Wire Range- Max. |
N/A 22 AWG |
Poles (Ports) |
N/A 6 |
Pieces per Bag |
N/A 250 |
Length |
N/A .750 (19.1) inches (mm) |
Width |
N/A 1.15 (29.2) inches (mm) |
Height |
N/A .410 (10.4) inches (mm) |
Note |
N/A UL Listed |
